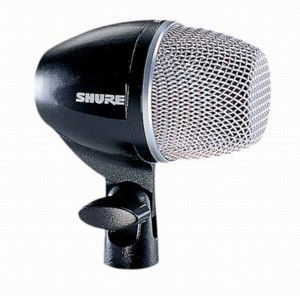

Shure PG52-XLR

Dynamic (moving coil)

Polar Pattern
Cardioid (unidirectional)

Frequency Response
30 to 13,000 Hz

Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector

Output Impedance (at 1000 Hz)
300 ohms

Sensitivity (at 1000 Hz)
-55 dBV/Pa, (1.8 mV), 1 Pascal=94 dB SPL

Electromagnetic Hum Sensitivity
25 dB equivalent SPL in a 1 millioersted field (60 Hz)

Connector
Three-pin professional audio connector (male XLR type)

Case
Die cast metal housing, black matte finish; hardened silver colored, tapered steel mesh grille; built-in locking stand adapter

Environmental Conditions
This microphone operates over a temperature range of -29 to 57 degrees Celsius (-20 to 135 degrees Fahrenheit), and at a relative humidity of 0 to 95%.

Weight
Net: 470 g (16.8 oz)
Packaged: 1053 g (2 lbs 5 oz)
